Configure a Zaptec EV Charger
Start with Configure an EV Charger. This page only covers what is different for Zaptec.
Zaptec exposes the selected charger current to Homey, so PELS can read the current step automatically. You do not need the generic selected-current feedback Flow for Zaptec.
Automatic charging power
A Zaptec app version that lets Homey set the charger's charging power offers Automatic under Control model, and a newly managed charger uses it. PELS then sets the charging power directly in the power levels the charger publishes, and the Zaptec app handles phases and the installation current. No key, Flow or EV phase model is needed, and the current setup below is not used. A charger PELS set up before keeps its manual setup until you choose Automatic.
The Zaptec app applies that power to the whole installation, so PELS uses it only for a charger with no other Zaptec charger on its installation.
While PELS controls the charger, it keeps the charger's power control in Homey set to Homey. If you change it to Automatic in the Zaptec device, PELS sets it back.
Built-in current control
Without Automatic, PELS sets the charging current. Open the charger's Setup → Charging current section. For an installation with one charger, confirm This installation has only one charger. PELS uses a writable current capability when the installed Zaptec app exposes one. Otherwise, create a Homey API key with Flow permission using Homey's API-key guide, enter it here, and choose Save key and enable. If a key is already verified or the charger has a writable current capability, choose Use built-in control. One key works for all supported chargers on this Homey.

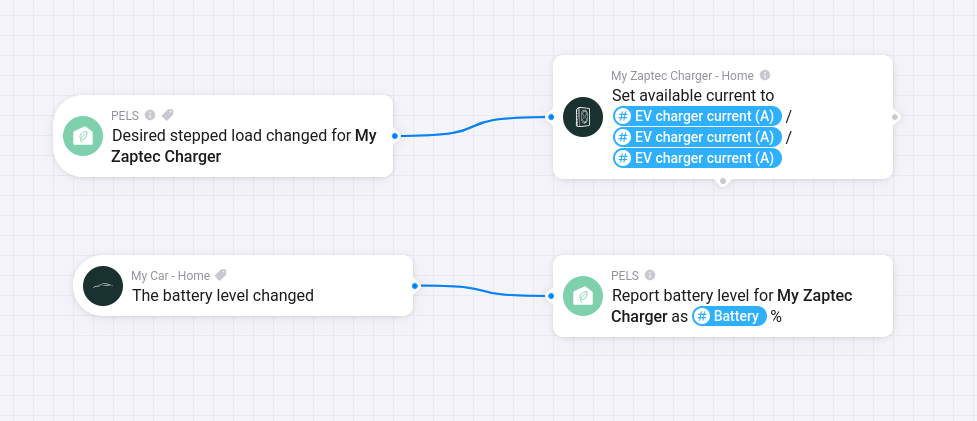

Before switching from an existing Flow, remove its current-setting action and choose Check again. Enable built-in control and check that the page says Built-in current control is selected. If you add a current-setting Flow later, PELS cannot stop it, and the two would override each other: the page then says Built-in current control is paused, PELS leaves the current to the Flow, and built-in control resumes on its own once you remove that action and choose Check again. Keep unrelated battery-level Flows.
Zaptec's action changes the current for the whole installation. PELS refuses built-in current control when it knows of another charger on that installation. Only confirm a single-charger installation when that is true; otherwise keep your existing coordinated installation Flow.
Several chargers on one installation
Zaptec's current setting applies to the whole installation, so PELS does not set it when the installation has more than one charger. Keep the Flow that coordinates those chargers: Setup → Charging current then offers Use a Flow. PELS still starts and stops each charger.
Battery Reporting
The Zaptec charger does not know the car's battery level. Select the car in the charger's Car section, or, with no car selected, report it with Report battery level for charger and choose the Zaptec charger in that card. See EV charger battery reporting.
