Configure an EV Charger
Charging-current setup
Use this guide when an EV charger is paired in Homey and PELS should decide how much charging current is available.
For most supported chargers PELS controls charging through the charger's Homey app, with no Flow. Only a charger PELS cannot control directly needs a Flow that passes the PELS current to the charger app.
| Charger (Homey app) | How PELS controls it |
|---|---|
| Easee (Easee) | Directly, no key or Flow. See the Easee guide. |
| Alfen (Alfen, or Alfen Pro-line/ACE) | Directly in whole amps from 6 A, no key or Flow. |
| Peblar (Peblar EV Charger by Kyle Michiels) | Sets the live charge limit directly in whole amps from 6 A, no key or Flow. |
| Enua (Enua) | Directly through the charger's charging power, in whole amps from 6 A, no key or Flow. PELS converts amps to watts from the charger's grid type. |
| Zaptec (Zaptec) | Directly. See the Zaptec guide for when it needs a Homey API key. |
| Tesla (Tesla Car & Energy) | Directly through the car. See Tesla vehicle charging. |
| Futurehome Charge (Futurehome) | Directly, with a Homey API key. See the Futurehome guide. |
| Wallbox (Wallbox Charger) | Directly, with a Homey API key under Setup → Charging current. |
| WARP Charger (WARP Charger) | Directly, with a Homey API key under Setup → Charging current. Keep Current limit shown on the charger's device in Homey: PELS reads the charger's current from it. |
| amina S (amina) | Directly, with a Homey API key under Setup → Charging current. PELS starts and stops charging with the charger's on/off switch. |
| go-e Charger (go-e Charger) | Directly, with a Homey API key under Setup → Charging current. PELS starts and stops charging with the charger's Charging Allowed switch. Set the maximum current no higher than your cable allows: the charger caps the current at the cable's rating. |
| KEBA P20 and P30 (Keba) | Directly, with a Homey API key under Setup → Charging current. PELS starts and stops charging with the charger's Turn on charger switch. The KEBA P40 has no such switch in the app, so PELS does not list it. |
| OCPP 1.6 chargers (OCPP Server) | Directly through the charger's charging power, in whole amps from 6 A, no key or Flow. PELS reads the charger's phases from the app's phases setting, and starts and stops charging with the charger's charging switch. |
| Smappee EV Wall (Smappee) | Starts and stops charging through the charging mode: it pauses the charger and resumes it in standard charging. The app offers no current control. |
| Zappi (myenergi) | Starts and stops charging. The Zappi charges in the charge mode you chose in the myenergi app. |
| Another charger whose Homey app lets Homey set its charging power and publishes a power range for it | Directly through that power setting, no key or Flow. The device page offers Automatic with that range. |
| Any other charger | Ask for direct control from PELS, or use a current-control Flow. See A charger PELS does not list. |
A Homey API key with Flow permission is created with Homey's API-key guide. Enter it under Setup → Charging current and choose Save key and enable; if a key is already verified, choose Use built-in control. One key works for all supported chargers and cars on this Homey.
If one of your Flows already sets the charger's current, PELS keeps that Flow working and leaves built-in control off or paused, because PELS cannot stop a Flow and the two would override each other. To switch, remove the Flow's current-setting action and choose Check again. Keep unrelated Flows, such as battery reporting.
Before You Begin
- PELS must already be installed and configured with live whole-home power data.
- Your EV charger must already be paired in Homey.
- If you need a manual current-control model, check the supply and charging phases in the charger’s settings.
If PELS is not set up yet, start with Getting Started.
Step 1: Open the Charger Settings
Open More -> Apps -> PELS -> Settings -> Devices. The charger should appear there. Refresh the device list if it does not.
Step 2: Choose the Control Model
Open the charger in the Devices tab and check Control model.
When PELS can read the charger's power levels from its Homey app, Control model offers Automatic and Manual. Automatic is the default for a newly managed charger: PELS takes the levels from the charger's own settings, such as its phases, grid type and current limits, and shows them as Charging range. It follows changes to those settings. A charger you set up before Automatic was available keeps its manual setup until you review Automatic; Setup & recommendations offers that review.
For a charger with adjustable current that uses a manual model, choose the preset that matches your installation. A start/stop charger needs no current preset.
| Control model | Use when |
|---|---|
| EV 1-phase | 230 V single-phase charging. |
| EV 3-phase | Three-phase charging on a 400 V TN supply. |
The presets do not support 230 V IT three-phase charging. Neither preset is an accurate substitute for that supply and charging mode. Automatic uses the charger's own grid reading where the charger reports one, including IT three-phase.
The EV models let PELS calculate the current in amps and expose it as EV charger current (A). A manual stepped-load setup can still work, but then you must convert watts to amps yourself.
Then configure the charger as a normal managed device:
- Enable Managed by PELS.
- Enable Power-limit control.
- Set a priority that matches how important EV charging is compared with heaters, water tanks, and other managed devices.
Lower priority numbers are more important. Devices with higher numbers are limited first when PELS needs to stay under your grid import limit or hard cap.
Under Setup → Default charging current limits, save the minimum and maximum currents to use when the connected car has no saved range. This covers older cars without a Homey car device and cars PELS has not identified. Both values accept whole amps from 6 to 32.
In the charger's Car section, select the cars that charge there. Each selected car can have its own Charging current limits. When that car is matched or confirmed, its saved range replaces the charger default. The same car range follows it to other chargers. Selecting a car alone does not identify which car is connected. Clearing a car's range returns it to the charger default.
The minimum is the lowest current PELS requests while charging; PELS can still pause charging. When the car reports that it has finished charging, PELS keeps the minimum on offer for when the car asks again, and does not raise it. The maximum also bounds attempts to raise the current. The charger's physical limits always apply. If no supported level fits the active range, PELS pauses charging. Changing the charger's phase configuration keeps the saved amp limits.
A charger whose Automatic model uses power levels in watts from its own settings, such as Zaptec, charges within those levels. Current limits do not apply to it, so its Setup has no default limits, and a car's limits apply when that car charges on another charger. An on/off charger also has no current for limits to set.
Step 3 (Optional): Charge on Solar Surplus
If you have solar and PELS can see your export, you can have the charger follow the sun instead of running to your hard cap. In the charger's device page, turn on Charge on solar surplus.
PELS then picks the charging current your export covers and adjusts it as the sun changes. The default minimum is 6 A — about 1.4 kW on one phase, 4.1 kW on three. If the active car or charger range has a higher minimum, surplus must cover that level. When it cannot, PELS falls back to the same Power limiting choice it uses for your hard cap: charging is turned off, or lowered to the step you picked and topped up from the grid.
Your grid import limit, hard cap and daily budget still come first, and a smart task with a deadline overrides this while it is running. See Solar and Self-Consumption for the full picture.
Step 4: Configure Boost Mode Battery Reporting
This step is optional. Basic capacity control does not need battery reporting.
Choose one of these battery-reporting paths for boost mode and Smart tasks:
- Selected car: open the charger's Car section and select the supported cars that charge there. PELS uses the battery level of the car it matches to the charger. Selecting a car alone does not establish a match; while the page says Waiting to identify the connected car, the charger has no battery level, and its card on Overview says no battery level. PELS matches cars whether or not they are selected, and each car in the list says whether it has been matched to this charger, so you can check that matching works before you rely on it. When a car selected for another charger plugs in there, PELS matches it to that charger, not this one.
- Charger reading: leave the car selection empty. If the charger exposes a supported battery-percentage capability, PELS reads it directly.
- Flow reporting: leave the car selection empty and report a battery-percentage tag from the car or charger app using the Flow below.
You can select both cars if they share a charger. If each car always charges on its own charger, select it only there: two cars plugged in at the same time are then matched to their own chargers straight away. If your cars use either charger, select both cars on both chargers. PELS compares their plug-in reports with the charger's report and uses the battery level only after it finds a match. PELS matches a car as soon as its plug-in report arrives, even when the car's app reports up to 20 minutes after the charger. If another car or charger reports within the next 20 minutes and could match too, PELS drops that match and leaves the car unmatched. Selecting a car does not force a match. A car whose plug-in report arrives more than 20 minutes after the charger's is never matched automatically, even if it is the only car selected, because it could have plugged in anywhere in that time. After those 20 minutes the charger's card says Could not identify the connected car; use Confirm connected car in the charger's Car section to match it by hand. When every selected car reports unplugged, the card asks for this straight away, since no match can come until a car reports its plug-in. In both cases the card offers Confirm car, which opens the charger's Car section, even while another reason holds the card.
While any car is selected, PELS ignores the battery-reporting Flow, even before a match is available. It does not provide a fallback reading. Clear the car selection to return to the Flow. Setup & recommendations flags an enabled Report battery level for charger action for a charger with a selected car, so the ignored action can be removed or its Flow disabled when it is no longer needed. If no selected car has been matched to that charger yet, it instead suggests clearing the car selection so the Flow keeps working until the car shows as matched.
Use this Flow shape for boost mode:
| Flow part | Card |
|---|---|
| When | Your car or charger app: battery level changed |
| Then | PELS: Report battery level for charger |
Choose the same charger in the PELS action card, and map the battery percentage tag from the car or charger app to battery level.
With no car selected, this Flow supplies battery reports for the charger. EV boost mode can use the resulting battery level to let the charger take power from lower-priority devices while the car is below the configured boost threshold.
Step 5 (Optional): Charge to a Battery Level
Without a target battery level, a charger under power limiting charges until the car stops, at the car's own charge limit. To keep the car at an everyday level instead, open the charger's device page and turn on Charge to a battery level in the Charging card, then set the level, for example 30%.
- PELS stops charging at that level. At or above it, PELS turns the charger off. Below it, the car charges as power allows. At 100%, PELS never turns it off: the car stops itself, and can keep heating or cooling from the wall.
- A smart task charges further. In the periods a smart task booked, the car charges past the level toward the task's target, for example 80% by 07:00. When the task ends, the level applies again.
- PELS needs the car's battery level, from a car selected under Car, from the charger itself, or from a Flow (Step 4). The status line under the setting says what the level means for the car on the cable right now.
- Charge before the battery level is known decides what happens to a car whose level PELS does not have: a guest car, a second car not selected under Car, a car whose app doesn't share its battery level, or your own car before its app reports in after you plug in. On (the default), such a car charges to its own limit. Off, it does not charge until PELS knows its level. An energy smart task (kWh by a time) still charges it in its booked periods; a battery level task needs the level to plan, so it waits too.
- PELS needs Power-limit control (or Only PELS starts this device) and a power reading from the charger to stop it. Without them, PELS only watches the charger and the status line says so.
- A car kept below the level shows as held back. When PELS keeps the charger paused for 15 minutes while the car's known battery level is below the level, its Overview card says Held back, and the Held-back devices widget offers Let it run now: a short smart task that aims to charge the car to the level within three hours.
Charge boost and Charge to a battery level do different jobs: boost takes power from lower-priority devices while the battery is below its level, and the battery level is where charging stops.
Step 6: Check the Setup
Start with Simulation mode if you are still tuning the rest of PELS. Then verify:
- The charger is visible as a managed device in PELS.
- For a charger with adjustable current, check Automatic where offered or the manual model that matches your installation.
- Check the control method in the charger table. A charger controlled through writable charging power, including a Zaptec using its automatic power range, needs no current-control switch. If the charger offers Use built-in device control, check that it is on. If you enabled built-in control under Setup → Charging current, check that it shows Built-in current control is selected.
- Once simulation is off, check in the charger app that it follows the requested current or power level. For a start/stop charger, check that charging pauses and resumes.
- If you configured battery reporting, the charger's Car section or charging readout shows the battery percentage from your chosen source.
Automatic charging phases
With the community Peblar EV Charger integration, open the charger's Charging section and choose Charging phases:
- Leave to charger leaves the phase setting with the charger.
- Automatic selects one or three phases using available power, solar and the current smart task.
- One phase requests single-phase charging.
- Three phases permits three-phase charging; the car can use fewer phases.
Before enabling it, select the house phase used for single-phase charging and confirm that the installation has a 400 V three-phase supply with neutral and that the charger and car support phase switching. This uses the same electrical connection setting shown under Power limiting.
PELS lowers charging current before changing phases and keeps room for the transition. It waits for independent power readings rather than treating the requested setting as completed charging. Short solar changes do not cause repeated switching. A transition that cannot be confirmed pauses further attempts until the car reconnects.
Choosing Leave to charger, turning off management or enabling simulation returns the phase setting PELS recorded before taking control. Returning to a setting that permits more phases can pause charging first.
A charger PELS does not list
This section is only for a charger that is missing from the table under Charging-current setup. Every charger in that table is controlled by PELS itself and needs none of these Flows.
Ask for direct control
Support for a new charger usually comes in an app update within a few days, and then it needs no Flow. Ask for it from PELS, so the request carries what Homey reports about the charger:
- If the charger is not under Settings → Devices, choose Request support on the Missing a device? card at the end of that page and pick the charger.
- If it is there, open it and choose Report a problem at the bottom of its page. Say which charger and Homey app it is, and that you want PELS to control its charging current.
See Missing a device? and Get help.
Or connect it with Flows

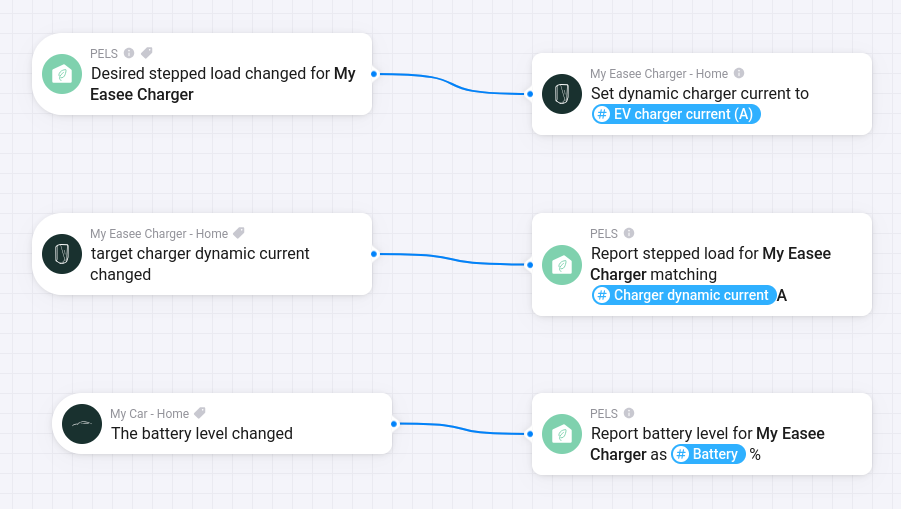

Until then, or instead, two Flows connect PELS to the charger app. The first sends PELS' desired current to the charger. The second reports the selected current back to PELS when your charger app can expose it.
Send desired current to the charger
Use this Flow shape:
| Flow part | Card |
|---|---|
| When | PELS: Stepped device target changed for your charger |
| Then | Your charger app: set available charging current |
In the charger app action card, use the PELS Flow tag EV charger current (A) for the current value.
PELS handles the 1-phase or 3-phase conversion based on the control mode you selected in Step 2. Do not use Planning power (W) for a charger current field unless you are intentionally building a manual conversion Flow.
Report selected current back to PELS
If your charger app reports the selected current, add this Flow:
| Flow part | Card |
|---|---|
| When | Your charger app: charger current changed |
| Then | PELS: Report stepped load for your charger matching the charger-current tag |
This feedback lets PELS confirm which charging level the charger selected. Use the charger app's current tag, not EV charger current (A), in this feedback Flow.
When the reported value is amps, add A after the tag in the matching field, for example [[Charger dynamic current]] A. Without the A suffix, Homey may pass the number without a unit and PELS cannot reliably match it as charger current.
Troubleshooting
| Problem | What to check |
|---|---|
| The charger is not listed in PELS | Confirm the charger is paired in Homey and choose Refresh devices under Settings → Devices. If it is still missing, choose Request support on the Missing a device? card there. |
| The charging current never changes | For a charger in the table under Charging-current setup, open Setup → Charging current and finish it: the page must say Built-in current control is selected. For a charger PELS does not list, confirm it is managed, power-limit control is enabled, and PELS has live whole-home power data. |
| The charger receives the wrong current | Under Manual, check that the device uses the correct EV 1-phase or EV 3-phase model. Under Automatic, check the phase and current settings in the charger's own app. |
| Battery level does not update in PELS | If a car is selected, check whether PELS has matched it to the charger and whether that car is available in Homey. Otherwise, check that your battery-reporting Flow selects the correct charger. |
| PELS never limits the charger | Check the charger priority, your limits in Limits & safety, and whether Simulation mode is still enabled. |
For problems beyond the charger — budget, capacity, or a missed task — see the full Troubleshooting guide.
