Book Cheap Hours With Flows
Use this pattern when you want to run a device for a fixed number of cheap hours before a chosen time, without using a target-based Smart task.
The common EV example is: "Allow charging during the 5 cheapest hours before 07:00, but still let PELS reduce the charger if the home gets close to the hard cap."

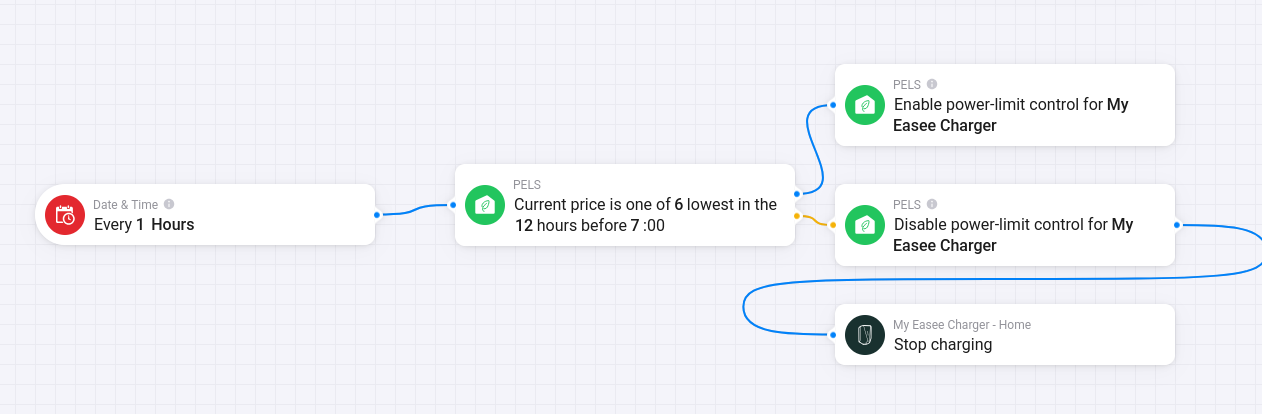

Figure 1. One Flow can check the cheapest-hour condition every hour, enable PELS control when the condition is true, and disable control plus stop charging when it is false.
When to Use This Instead of a Smart Task
Use Flow-booked hours when:
- You know how many hours you want.
- You want the cheapest hours in a fixed window.
- You prefer to own the schedule in Homey Flows.
- You do not need PELS to calculate a battery or temperature target.
Use a Smart task instead when you want PELS to plan from a target and ready-by time.
What You Are Building
You will create two Flows:
- A Flow that enables Power-limit control in a selected hour. If the device uses Leave off until turned on again, the Flow also needs to turn it on when the booked window opens.
- A Flow that disables Power-limit control outside those selected hours and tells the device app to stop or turn off.
The device stays managed by PELS. Your Flow decides when it may run. During allowed hours, PELS can limit its power to help protect the hard cap.
This pattern does not create a Smart task plan or history entry. The Flow owns the schedule; PELS owns power-limit decisions while the device is allowed to run.
Step 1: Configure the Device
In More -> Apps -> PELS -> Settings -> Devices:
- Enable Managed by PELS for the device.
- Configure the device's normal PELS control setup.
- Turn Power-limit control off as the default if the device should only run during booked hours.
For an EV charger, also complete Configure an EV Charger so PELS can control the charging current.
Step 2: Enable Control During the Cheapest Hours
Create a Flow like this:
| Flow part | Card |
|---|---|
| When | PELS: Current price is one of the lowest before a time |
| Then | PELS: Enable power-limit control for device |
If Leave off until turned on again is enabled and the previous window ended by turning the device off, add a device-on action at the start of the next booked window. PELS can then limit and resume it while that window is open.
Card arguments:
| Argument | Example | Meaning |
|---|---|---|
| Hours | 12 | Look back over the 12-hour window before the end hour. |
| Lowest count | 5 | Match the 5 cheapest hours in that window. |
| End hour | 7 | The window ends at 07:00 local time. |
With those values, PELS matches the 5 cheapest hours in the 12 hours before 07:00.
The trigger includes ties at the cutoff price. That means you may get more than the selected count when several hours have the same price.
Step 3: Disable Control and Stop the Device Outside the Booked Hours
Create a second Flow that runs when the hour changes and the same condition is false.
One common shape is:
| Flow part | Card |
|---|---|
| When | Every hour |
| And | PELS: Current price is one of the lowest before a time is false |
| Then | PELS: Disable power-limit control for device |
| Then | Charger, heater, or device app: stop charging, turn off, or set output to idle |
Use the same Hours, Lowest count, and End hour values as the enabling Flow.
Disabling Power-limit control stops PELS from starting the device when power is available. The separate stop action ends a run when the booked hour ends. If the device keeps running or starts again while Power-limit control is off, its draw still counts toward the hard cap and PELS cannot limit it to protect that cap.
Example: EV Charging 5 Cheap Hours Before 07:00
Recommended device setup:
- EV charger is Managed by PELS.
- EV charger uses the Automatic control model where offered, otherwise EV 1-phase or EV 3-phase.
- Current control is configured for the charger: built-in control for a supported charger, otherwise the EV charger current (A) Flow tag.
- Power-limit control is off by default.
Flows:
| Purpose | Cards |
|---|---|
| Allow charging in selected hours | Current price is one of the lowest before a time with Hours = 12, Lowest count = 5, End hour = 7 -> Enable power-limit control for device |
| Start a charger held off by Leave off until turned on again | At the start of the booked window, use the charger app’s start action. |
| Stop allowing charging outside selected hours | Hourly trigger + same lowest-price condition is false -> Disable power-limit control for device -> charger app: stop charging |
During selected hours, PELS can start or increase charging only when the hard cap and priority rules allow it. Outside those hours, the closing Flow stops the charger and Power-limit control stays off.
Example: Water Heater 3 Cheap Hours Before 06:00
Use the same pattern with:
Hours = 10Lowest count = 3End hour = 6
This lets the water heater run in the 3 cheapest hours before 06:00. If the home is already close to the hard cap, PELS can still limit the heater even inside a selected hour.
Common Pitfalls
| Problem | Fix |
|---|---|
| The device runs outside selected hours | Make sure Power-limit control is disabled outside the chosen hours and that the Flow also tells the device app to stop or turn off. |
| The device never runs | Check prices and available power. If the device says Turned off elsewhere — turn it on to resume, have the opening Flow turn it on at the start of the booked window. |
| More hours match than expected | Ties at the cutoff price are included. |
| The wrong night is selected | Use Current price is one of the lowest before a time, not today's-only pricing, when the window crosses midnight. |
| Charging current does not change | For a supported charger, check that built-in control is on and not paused by a Flow. For other EV chargers, check the current-control Flow and EV charger current (A). |
