How-To: Wire a Flow-Based Load Device to PELS
Use this pattern when a real Homey device has its own stepped power modes, but PELS should still decide which step to use, and PELS cannot set those modes itself.
Check the device's page in PELS first. Many devices need none of these Flows: PELS sets the level of a Høiax Connected water heater, a supported EV charger, and any device whose Homey app lets Homey set its power directly. Such a device shows Use built-in device control under Setup, or a Control model of Automatic. Build the Flows below only when neither is offered.
Typical devices:
- water heaters with
Low/Medium/Maxwhose app offers only Flow action cards for them - EV chargers PELS cannot control directly (see Configure an EV Charger)
- other controllable loads with discrete states
PELS owns the decision, and your Homey Flows only do the vendor-specific mapping.
What You Are Building
Two Flow paths:
Outbound desired-step mapping When PELS changes the desired stepped-load level, your Flow maps that generic intent to the vendor action card.
Inbound step feedback When the device changes level, your Flow reports the selected step back into PELS.
This keeps three values separate:
- selected step on the device
- measured power right now
- planning power that PELS reserves for that step
Why This Works
For stepped-load devices, measure_power is not enough to know the selected level:
- the heater may be set to
Maxwhile drawing0 W - the live draw may be lower than the configured step
- the vendor app may report step changes separately from power
That is why PELS needs explicit step feedback from your Flows.

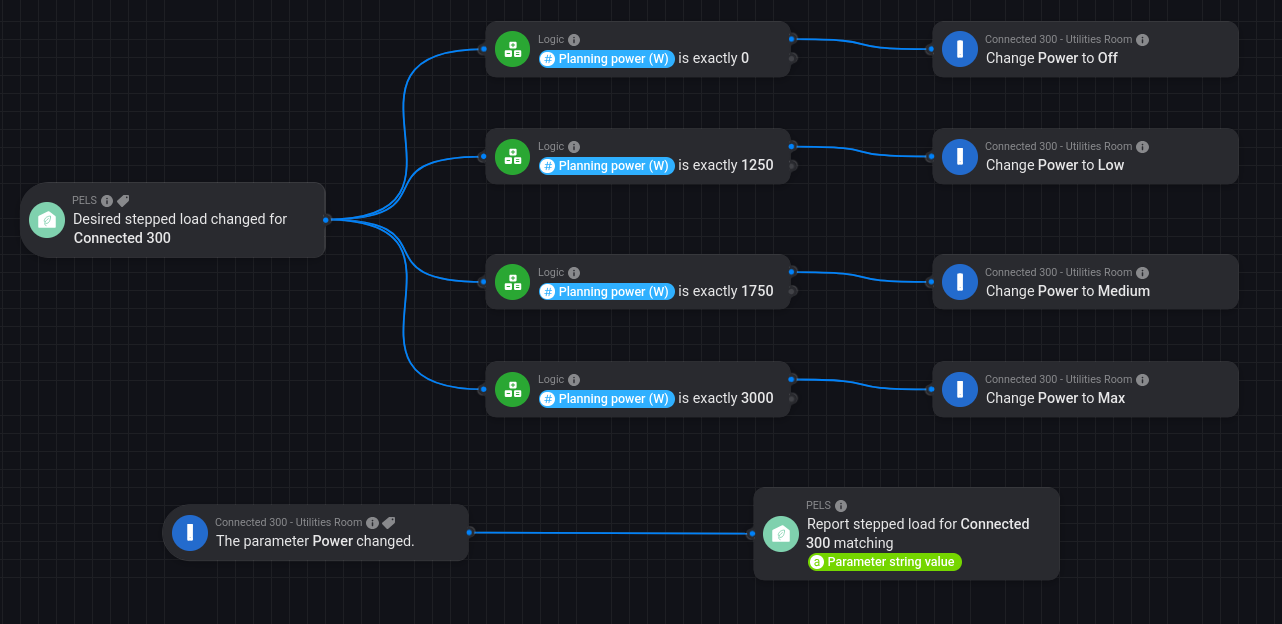

Example Mapping (a 3 kW water heater)
| Step | Planning Power | Vendor Action |
|---|---|---|
| Off | 0 W | Set power level to Off |
| Low | 1250 W | Set power level to Low |
| Medium | 1750 W | Set power level to Medium |
| Max | 3000 W | Set power level to Max |
The vendor action names here stand for whatever the heater's app offers.
- The outbound Flow reacts to Stepped device target changed for the heater.
- Each branch checks the Planning power (W) token and calls the matching vendor action.
- The feedback Flow listens for the device's own level or power change and reports the matching stepped-load level back into PELS.
If your device app exposes a direct level trigger, prefer reporting the step directly with Report stepped load for [device] as [step]. If it only exposes a power value, use Report stepped load for [device] matching [power].
Setup Checklist
- In the PELS device settings, set
Control modeltoStepped load. - Define the device steps and planning power values.
- Under Power limiting, choose how far What PELS does when limiting this device may go:
Turn off(as far as off) orSet to step(as far as the lowest active step). PELS goes only as deep as it needs, so a stepped device will often be left running at a lower step either way. - Create the outbound Flow from Stepped device target changed for [device] to the vendor action cards.
- Create the inbound feedback Flow with either: Report stepped load for [device] as [step] or Report stepped load for [device] matching [power]
Common Pitfalls
- Forgetting the feedback Flow. Without it, PELS only knows what it last asked for. When the device reports no level back for two level changes in a row, the device card says Level change not confirmed and points you to the Flow that reports the level back.
- Treating
measure_power = 0as if the selected step wereOff. - Mapping vendor power feedback to the wrong configured planning power.
- Using Set expected power for device for a stepped-load device. That card is legacy and is rejected for built-in stepped loads.
PELS Cards Used
- Stepped device target changed for [device]
- Report stepped load for [device] as [step]
- Report stepped load for [device] matching [power]
